The products are divided into integral and modular structures, which are mainly composed of cryogenic storage tanks, gasifiers and pressure regulating devices. At the same time, customers can select and match reheater, flow halometer, deodorizer, gas leakage alarm device and control system according to the requirements of use, which can achieve automatic, manual control, data display and remote monitoring and other functions.
Compatibility
Flexible combination of different modules according to storage and gas supply capacity to shorten reaction period to customer requirement and enhance efficiency
Modularization
Whole system is modularized, with compact structure and convenient for on-site operation.
Economical and practical
Trailer with pump or high pressure trailer can be used for liquid filling to avoid gas vent before filling. Besides, economizer circuit is equipped to control the tank pressure and to decrease overpressure vent amount.
 |  |  |  |

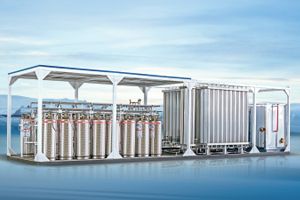

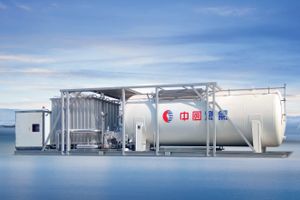

| Integrated LNG Small Cryogenic Gas Supply Station | Integrated LNG Small Cryogenic Gas Supply Station | Group-cylinders LNG Storage And Gas Supply Station | Modularized LNG Small Cryogenic Gas Supply Station |
Gasification capacity: 30Nm3/H-250Nm3/H Tank volume: 1m3-5m3 Thermal-insulating mode: Super vacuum multi-layer thermal insulation Working pressure: 1.6MPa-3.5MPa Features: Suitable for working case with small amount gas supply and longtime storage. Equipment fully integrated and easy for installation. | Gasification capacity: 300Nm3/H-500Nm3/H Tank volume: 11.12m3-30m3 Thermal-insulating mode: Super vacuum multi-layer thermal insulation, perlite powder vacuum insulation Working pressure: 0.8MPa-1.6MPa Features: Compact, space saving, whole skid mounted, easy to install. | Gasification capacity: 20Nm3/H -700Nm3/H Tank volume: 175L×N-495L×N Thermal-insulating mode: Super vacuum multi-layer thermal insulation Working pressure: 1.37MPa-1.60MPa Features: Compact, space saving, whole skid mounted, easy to install. | Gasification capacity: 150Nm3/H-1500Nm3/H Tank volume: 1.06m3-66.67m3 Thermal-insulating mode: Super vacuum multi-layer thermal insulation, perlite powder vacuum insulation Working pressure: 0.8MPa-1.6MPa Features: Each module can be freely combined according to the amount of storage and the actual gas consumption and interchangeable. |
